Function: It is suitable for root pass, hot pass, filling and capping of pipe joint welding with GMAW and FCAW-GS welding processes in the field.

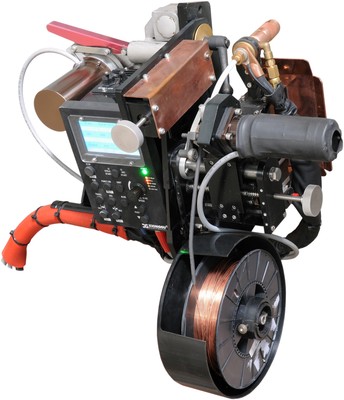

Configuration: welding head (left handed and right handed), adapter, control cables, track (optional), welding power source (to be selected according to specific welding process)
Features：
Chinese/English/Russian language interface;
Welding speed, torch oscillation width can be adjusted manually and timely according to state of welding seam during welding;
It is designed with embedded system and built-in welding expert database;
Parameters are set by sections, The system is able to call corresponding parameters automatically to reduce welder’s operation difficulties and labor strength;
GPS and mobile network interface are reserved to offer convenient after-sale services;
The system is compatible with a variety of analog and digital power sources.
Main Technical Parameters
Model | A-300P | A-300X |
Product ID | 4304000000 | 4300000000 |
Applicable Pipe Diameter | > Φ 400 mm |
Number of Sections in Every Group | 1~180 Sections |
Wire Feeding Speed | 2.5~25 m/min |
Travelling Speed | 0.1~1.5 m/min |
Oscillation Mode | Pendulum oscillation |
Oscillation Width of Welding Torch | 0~20 mm |
Weight of Wire Spool | 2.7 kg/5.5kg |
Ambient Temperature | -25~55℃ | -40~55℃ |
Altitude | 4000m |
IP Rating | IP54 |
Weight | 22.5kg |
Dimensions (W×L×H) | 440mm×495mm×300mm |
