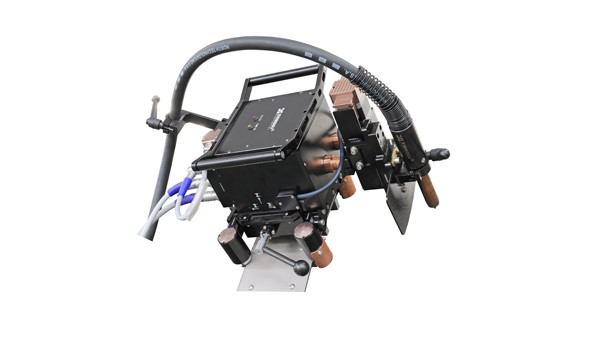

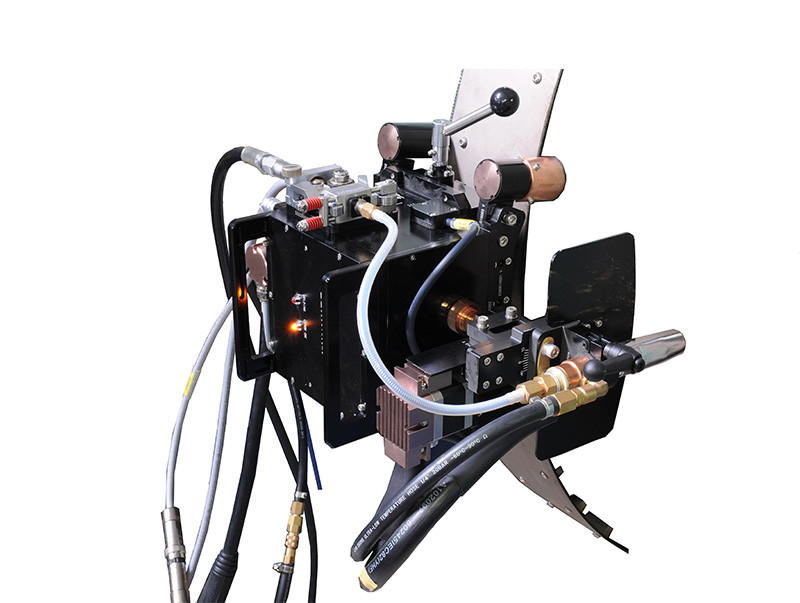

Function: It is suitable for full-position automatic tracking and welding of water pipes and large cylinder components; It can solve a variety of application needs such as horizontal welding, flat welding, vertical welding, and vertical welding. It is suitable for long-term and long-distance continuous welding, and the equipment is stable, reliable and safe; The welding pass rate is high, and the molding is beautiful; It can adapt to the full-position inner and outer wall welding of water pipes with pipe diameters above Φ168 and large cylinder components; The system has a high degree of integration, small size, and convenient equipment handling.

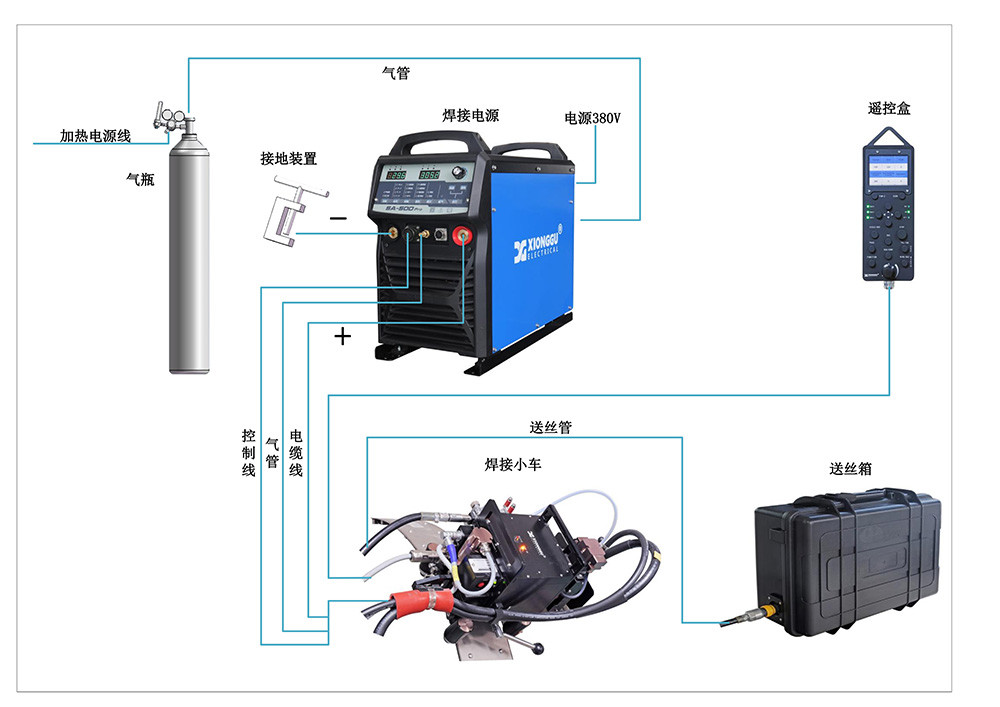

Configuration: welding trolley, external wire feeding box, handheld remote control, control cable; Soldering power supply.
◆ Chinese/English operation interface;
◆ Hand-held remote control operation to reduce the labor intensity of welders;
◆ The trolley can realize triangular swing and trapezoidal swing, which can adapt to different welding processes;
◆ The trolley chassis has a wide adjustable range, and the replacement track can adapt to the full-position welding of water pipes and large cylinder components of various diameters;
◆The system has a built-in Arc sense arc sensing and tracking function, which can adapt to the dry extension length and weld center without additional sensors, which is stable and reliable.
◆ The system has a built-in welding expert database, which can realize the automatic adjustment of the welding parameters of each layer and each channel, and the welder can get started quickly;
| Model | A-230 | Product Code | 4353000000 |
| Adapts to pipe diameters | > Φ168 mm | Walking speed | 0.1~1.5 m/min |
| Wire feeding speed | 2.5~18 m/min | Number of segments per group | 1~180 Sections |
| Torch swing width | 0~20mm | Welding torch swing form | Flat pendulum |
| Wire spool weight | 5kg/15kg | Ambient temperature | -20~70℃ |
| altitude | 4000m | Ingress protection | IP54 |
| Trolley weight | 12.5kg | Dimensions (L×W×H) | 500mm×350mm×265mm |
With continuous technological advancements, the appearance, color, and parameters may change. The parameters are for reference only and are not to be used as acceptance inspection standards.
