Semi-automatic welding machine

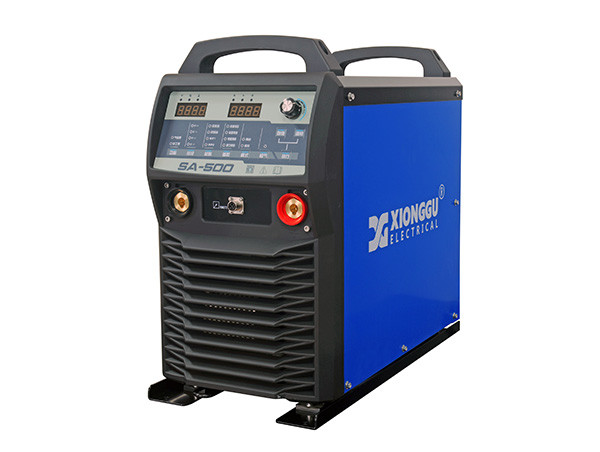

: SA-500 Series Digital Multi-process Welders

Function:
GMAW (dedicated welding power source for internal welding machine)
Features:
Dedicated welding power source for internal welding machine.
The arc characteristics are regulated by waveform control to suppress spatters and improve weld forming.
Digital preset and display of welding current (CC)/voltage (CV).
IGBT inverter, high efficiency and energy saving.
Dust-proof, sand-proof, water-proof and vibration-proof with good adaptability to the environment.
Good electromagnetic compatibility.
more>

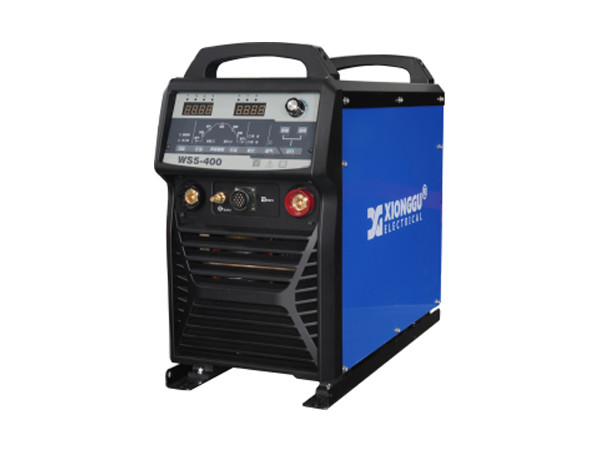

: WS5-400 Full Digital Multi-process Welder

Function:
SMAW (low hydrogen electrode)、 GTAW (HF)
Features:
High performance DSP chip is used for power source and arc control to improve product consistency;
Good human-computer interactive operation interface, convenient unified adjustment, and multiple sets of process parameters are stored for calling;
Key lock protection function, comprehensive welding data management function;
Stable arc striking without loss and high success rate of arc striking;
More stable and reliable HF arc striking, less electromagnetic interference, no HF discharge black spot;
more>

: DPS series Full Digital Pulsed MIG/MAG Welder

Function:
Precise short circuit transfer (PST) and pulsed spray transfer welding while carbon steel solid wire is used;
Precise short circuit transfer (PST) and pulsed spray transfer welding while metal cored wire is used;
FCAW-SS；SMAW (cellulose electrode)；SMAW (low hydrogen electrode);
Interface of automatic welding equipment and welding robot is available to realize automatic welding. Features:
Full digital soft switching inverter technology, 50 kHz switching frequency, integrated DC laminated bus structure, excellent dynamic characteristic;
Creative PST(precise short circuit transfer) technology;
more>

: MPS -500 Multi-process IGBT Inverter Welder

Function: FCAW-SS, SMAW (cellulose electrode), SMAW (low hydrogen electrode), DC GTAW (lift arc)
Features:
Independent cooling wind path, dust-proof, sand-proof, water-proof, vibration-proof, good environmental adaptability;
Digital preset and display of welding current (CC) and voltage (CV);
IGBT inverter power source, high-efficiency and energy saving;
Good electromagnetic compatibility.
more>

+ Learn More

Equipment Advantages

Splash small molding is good: The special waveform control technology makes the spatter generation significantly reduced, and the dry elongation is highly adaptable.

Digital control: The modular digital platform realizes the customization and upgrading of process curves, without the need to replace hardware, and always maintains the advanced welding performance.

High reliability: Verified by extreme test environments, covering a number of rigorous tests such as high temperature, low temperature and rain.

1992Trusted Partner Since 1992
20+Our equipment operates in over 20 countries
150,000Successfully participated in the construction of 150,000 kilometers of large pipelines worldwide
