Function:

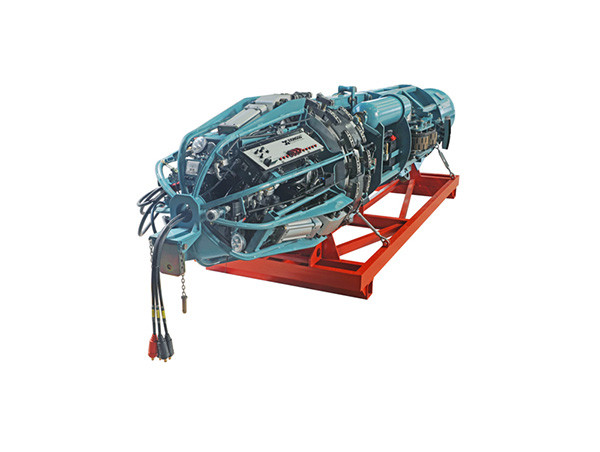

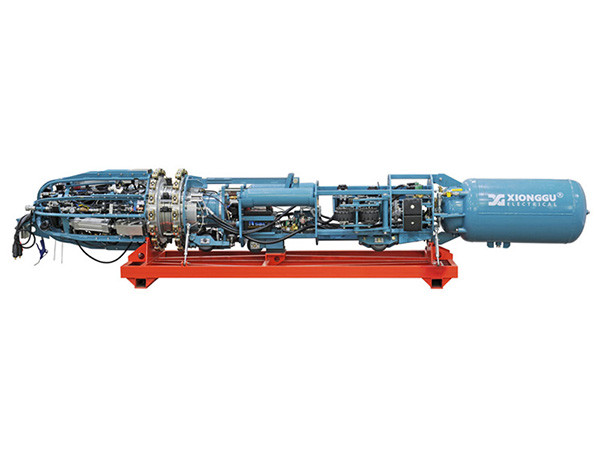

It is suitable for high efficiency automatic GMAW welding of pipeline internal circular seam.
Configuration:
Machine host, central controller, reach rod assembly, welding power source adapter and dedicated welding power source.
◆Designed for precise root pass welding of internal circular seam, one click operation. Multi torches welding at the same time, high welding speed and high welding quality. Embedded system is applied, welding expert database is built-in.
◆4G mobile web, WiFi and QR code scanning interfaces are reserved, it can provide remote technical services and data cloud transmission to facilitate real-time quality management.
◆Weld image acquisition and display, intuitive display of weld bead forming and appearance (optional).
| Model | A-802 | A-804 | A-806 | A-808 | A-810 |
| Applicable Pipe Diameter | 20"/22" |
24"/26" 28"/30" |
32"/36"/38" 40"/42" |
48" | 56" |
| Number of Torch | 2 | 4 | 6 | 8 | 8 |
| Travel Speed | 0~1000(mm/s) | ||||
| Wire Diameter | Φ0.8mm~Φ1.0mm | ||||
| Welding Speed | 0~1500mm/min | ||||
| Compressed Air Pressure | 1.4 MPa | ||||
| System Working Pressure | 0.6~1.4 MPa | ||||
| Ingress Protection | IP54 | ||||
| Ambient Temperature |
-25~55℃ (Customized machine for temperature below -25℃) |
||||
| Altitude | 4500m | ||||
With continuous technological advancements, the appearance, color, and parameters may change. The parameters are for reference only and are not to be used as acceptance inspection standards.
