◆High performance DSP chip is used for power source and arc control to improve product consistency;
◆Good human-computer interactive operation interface, convenient unified adjustment, and multiple sets of process parameters are stored for calling;
◆Key lock protection function, comprehensive welding data management function.
◆Stable arc striking without loss and high success rate of arc striking.
◆More stable and reliable HF arc striking, less electromagnetic interference, no HF discharge black spot.

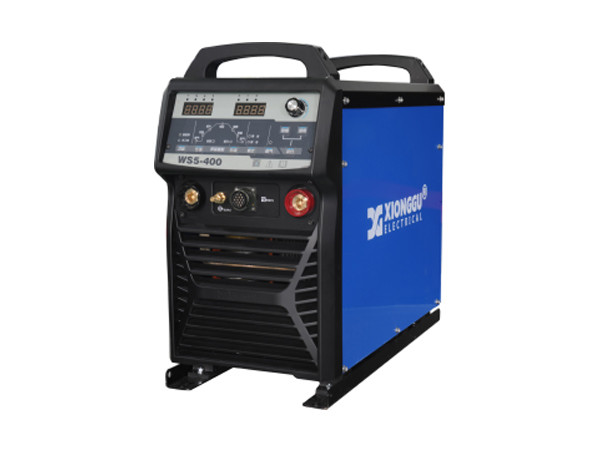

| Model | WS5-400 |
| Product ID | 4044010001 |
| Input Power Supply | 3 phase 380V±10％ 50/60Hz |
| Rated Input Power | 20kVA |
| Rated Input Current | 30A |
| Rated Output Current/Voltage | 400A/36V |
| Rated Duty Cycle | 60％ |
| Max. Open-Circuit Voltage (Peak) | 94V |
| Output Current Range | 20~400A |
| Cooling | Air cooled |
| Ambient Temperature | -40~55℃ |
| Altitude |
≤1000m If the altitude is greater than 1000m, the duty circle will decrease |
| IP rating | IP23 |
| Insulation Grade | F |
| Weight | 38.5kg |
| Dimensions (W×L×H) | 315mm×645mm×565mm |
With continuous technological advancements, the appearance, color, and parameters may change. The parameters are for reference only and are not to be used as acceptance inspection standards.
