Usage: Welding wire feeding
Features: dustproof, sandproof, waterproof, shockproof design; Imported wire feeding mechanism and wire feeding motor are adopted; Double/quad drive wire feeding, stable and reliable.

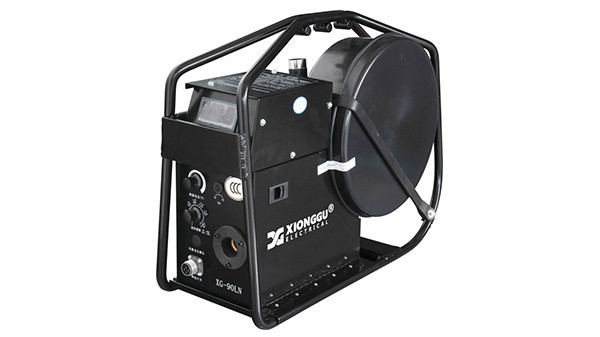

| Wire feeder model | XG-90LN/91LN | XG-93/95 |
| Supporting welding machine model | MPS-500; MPS-500(D); D7-500（N); MD-350CC/CV; MD-1100CC/CV; | DPS-500P; PCW-300 |
| Rated input voltage | DC 24V | |
| Rated input current | 3A | |
| Rated welding current | 500A | |
| The rated load is continuous | 60% | |
| Wire feeding speed | 0.76~4.06m/min (30~160inch/min) | 0.76~24m/min (30~950 inch/min) |
| Adaptable to the wire category | Self-shielding flux-cored wire | Metal powder core, solid wire |
| Maximum capacity of wire spool | 6.5kg | 20kg |
| Suitable for wire spools | Ф 238 mm ×Ф170mm ×Ф70mm | Ф300mm×Ф50mm×Ф103mm |
| Enclosure, rack material | aluminium | Aluminum/steel |
| Applicable wire diameter | Φ2.0mm~Φ2.4mm | Φ1.0mm~Φ1.6mm |
| Dimensions (W×D×H) | 220mm×620mm×470mm | 250mm×650mm×370mm |
| Ambient temperature | -40~55℃ | |
| altitude | 4000m | |
| Ingress protection | IP23 | |
| weight | 12kg | 17kg |
With continuous technological advancements, the appearance, color, and parameters may change. The parameters are for reference only and are not to be used as acceptance inspection standards.
